EngineAI / Humanoid robotics

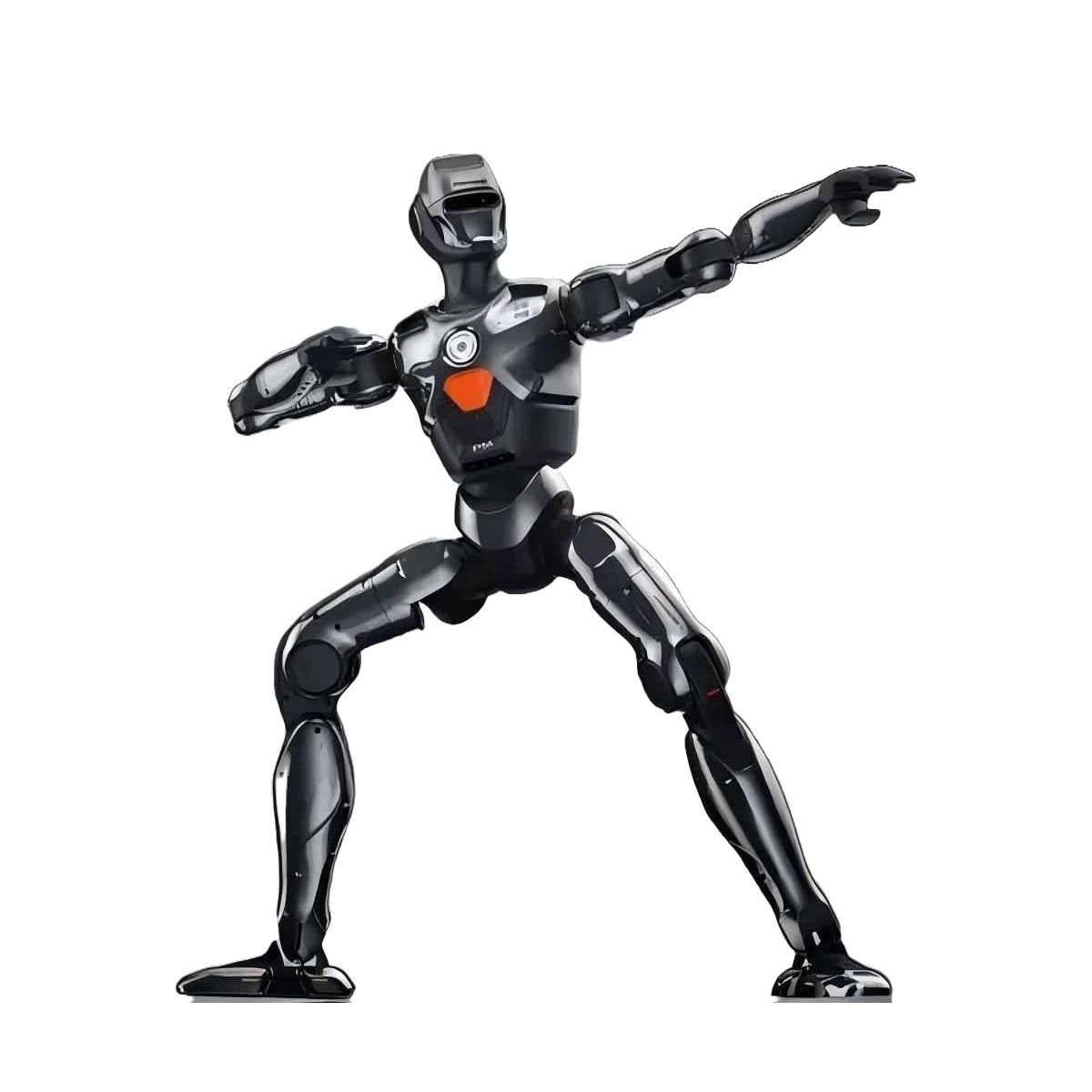

EngineAI PM01 – Education reference
Meet your next platformBuilt around
Built around
your use case.
EngineAI PM01 is a humanoid platform for locomotion research, developer education and supervised demonstrations. This page uses the manufacturer’s 2026 Education Edition as an explicit technical reference; the exact revision and supply configuration are confirmed in your proposal.
The reference includes binocular cameras and onboard computing for development work. It is separate from the Navigation Edition, which has different dimensions, weight and sensor equipment. Demonstrated behaviours do not imply unattended operation in an arbitrary environment.
Applications
Capabilities & features
Build a perception workflow
The Education reference includes binocular cameras. Confirm sensor requirements before choosing an edition.
Prepare software integration
Agree the supplied software, developer access and commissioning requirements in the quotation.
Technical specifications
Configuration
- Manufacturer
- EngineAI
- Model
- PM01
- Configuration
- 2026 Education reference
- Application
- Research
- Locomotion
- Bipedal
- Power source
- Battery
- Inventory ID
- EngineAI-PM01
Dimensions & mobility
- Standing height
- 140 cm (2026 Education reference)
- Body width
- 54 cm
- Body depth
- 25.3 cm
- Weight (measurement basis noted)
- About 44 kg including battery
Joints & manipulation
- Total degrees of freedom
- 24
- Degrees of freedom per arm
- 5
- Degrees of freedom per leg
- 6
- Waist degrees of freedom
- 1
- Head / neck degrees of freedom
- 1
Power & endurance
- Operating time and test conditions
- About 2 hours; manufacturer estimate, task dependent
- Charging time (include conditions)
- About 2 hours for a full charge; manufacturer estimate
- Charger input / output
- Charger output: 54.6 V, 4.5 A
- Battery replacement method
- Quick-removal battery
Perception & computing
- Cameras & depth sensors
- Two binocular cameras; Education reference has no 3D LiDAR
- Onboard computing
- 8-core CPU; Jetson Orin NX 16 GB
- SDK / API and development access
- Secondary development supported; confirm interfaces and licence
Operation & safety
- Intended operating environment
- Supervised research and demonstrations
- Required operator supervision
- Trained operator and controlled working area
Reference: EngineAI PM01 2026 Education Edition, reviewed 1 October 2026. Earlier PM01 revisions and the Navigation Edition differ. Photographs are catalogue references, not proof of the supplied revision.
Manufacturer references
Product video
Package, delivery & support
The list below is a quotation checklist. The final equipment and quantities are confirmed in writing.
Package to confirm
- Robot model, hardware revision and selected finish
- Battery quantity and compatible charging equipment
- Controller and accessories appropriate to the configuration
- Software access, licence terms and user documentation
- Packing, delivery and any requested training
Delivery
Delivery is quoted for your destination after configuration and supply availability are checked. The proposal specifies freight, estimated lead time, import arrangements and any applicable charges. No worldwide or free-shipping commitment is made by this listing.
Warranty
The written quotation identifies the warranty provider, duration, coverage, exclusions and service arrangements for the supplied configuration. Please review these terms before accepting an order.
Training & support
Request the documentation, software access, training and commissioning you need. Included services, optional work and ongoing support are itemised in the proposal.
